CENTRO DE INTERPRETACIÓN DEL CACAO
LUGAR: Comunidad Kichwa de Santa Rita – Archidona - Ecuador
AÑO: 2014
DISEÑO Y CONSTRUCCIÓN: Taller Con lo que hay 4
ESTUDIANTES: Xavier Duque, María Mercedes Reinoso, Carlos de la Torre, Nataly Moreno, Andrea Puertas, Emilia Pallares, Francisco García, Pablo Pérez, Pavel Guerrón, Diego Gaibor
TUTORES: Arquitectura Ensusitio - Enrique Villacís, Lorena Rodriguez, Cynthia Ayarza
INGENIERÍA: Patricio Cevallos
PACARI: Santiago Peralta, Carla Barboto, Gabriela Paredes
PRESIDENTE DE LA COMUNIDAD: Bolívar Alvarado.
FOTOGRAFÍA: Taller con lo que hay 4, arquitectura ENSUSITIO
“CON LO QUE HAY”, es un taller participativo de diseño, arquitectónico, planificación y construcción, en el cual tuvimos la oportunidad de participar como estudiantes en nuestros últimos años dentro de la academia. En este taller participan maestros, voluntarios, estudiantes y gente de la comunidad en intervención.
El proyecto: El centro de Interpretación del cacao nace como una idea de los chocolates orgánicos Pacari para impulsar el agroturismo y dar valor al trabajo, a los productores y a los procesos que intervienen en la producción del cacao para la producción del chocolate. El proyecto busca ser una muestra de todas las posibilidades agroturísticas, culturales, comunitarias y de los procesos del cacao.
Condicionantes y Necesidades: Como Condicionante principal del taller se propone trabajar Con lo que hay, es decir adaptarse a las condicionantes, características, materiales y elementos que nos ofrece el proyecto, lugar y usuario.
El proyecto responde a 3 Condicionantes que marcan diferentes necesidades, la empresa PACARI, el terreno y el río
Se definen 4 reglas de Juego: 1-Centralidad y Enfoques, 2-Elevado sobre piedras, 3-De pequeño a grande, 4-Natural – Biodinámico.

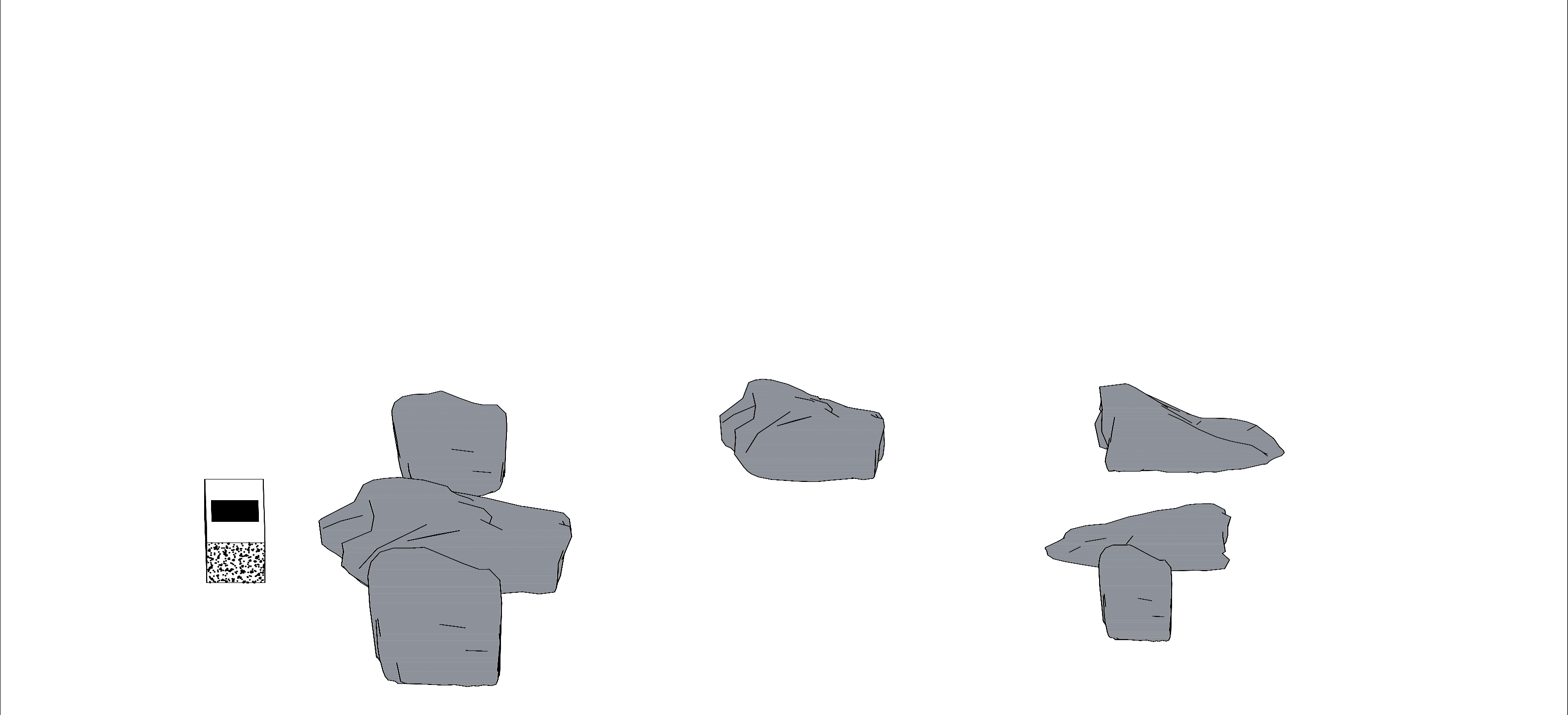

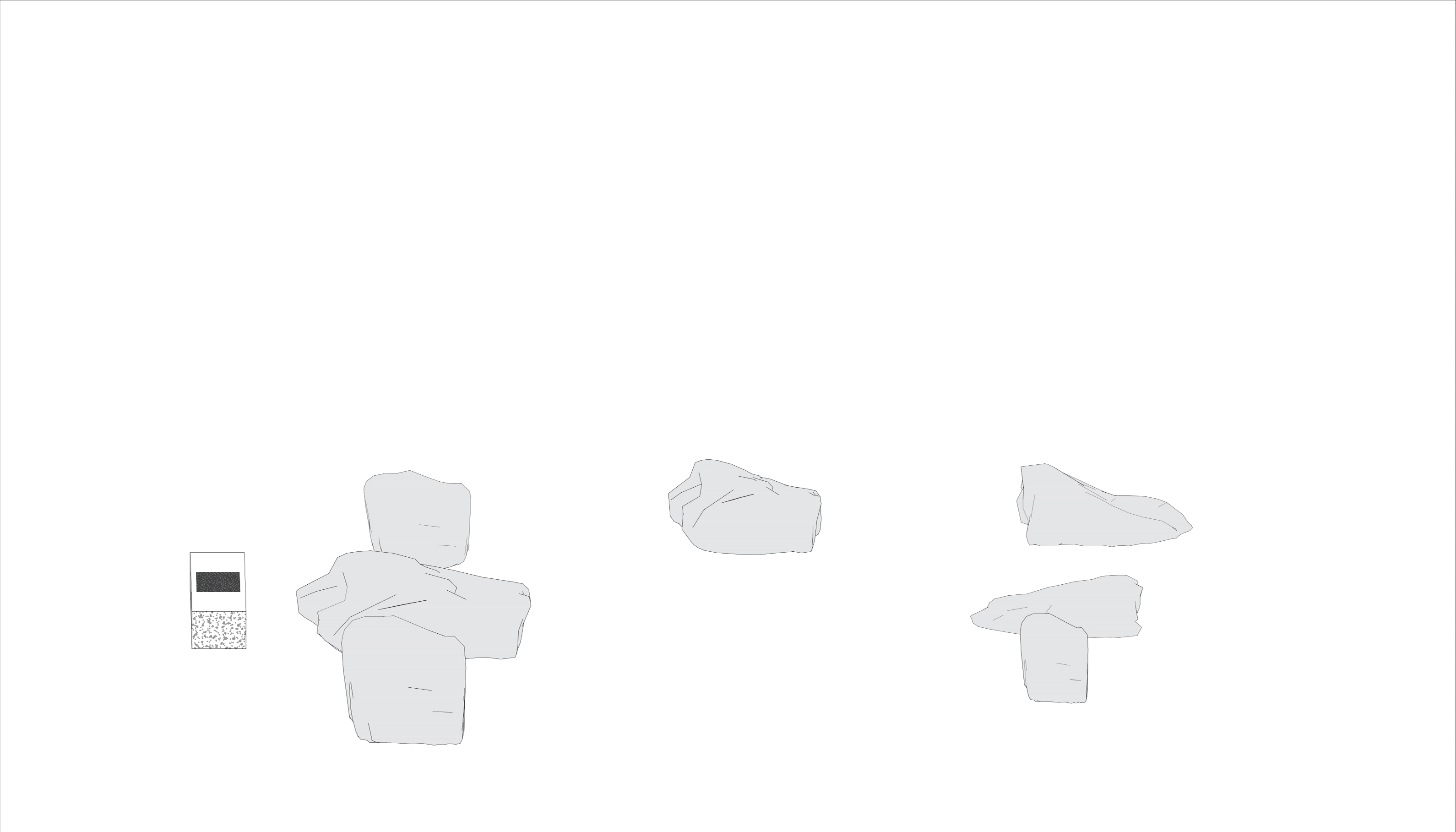

El Sistema Constructivo: Se basa en utilizar las piedras existentes como cimentación, sobre las cuales se asienta la estructura de caña de guadúa que se ancla a las piedras mediante perforaciones y anclajes de varilla, formando 3 cubiertas que se unen en el centro. Para las plataformas se realizaron anclajes de ángulos metálicos en las piedras, estos anclajes sostienen la estructura de madera que rodea a las piedras y conforma los espacios de plataformas para la realización de las diferentes actividades. Para el piso se utilizó tablones de madera de chonta.
La Construcción: La construcción del proyecto fue realizada entre los estudiantes del taller, profesores, voluntarios y gente de la comunidad.
